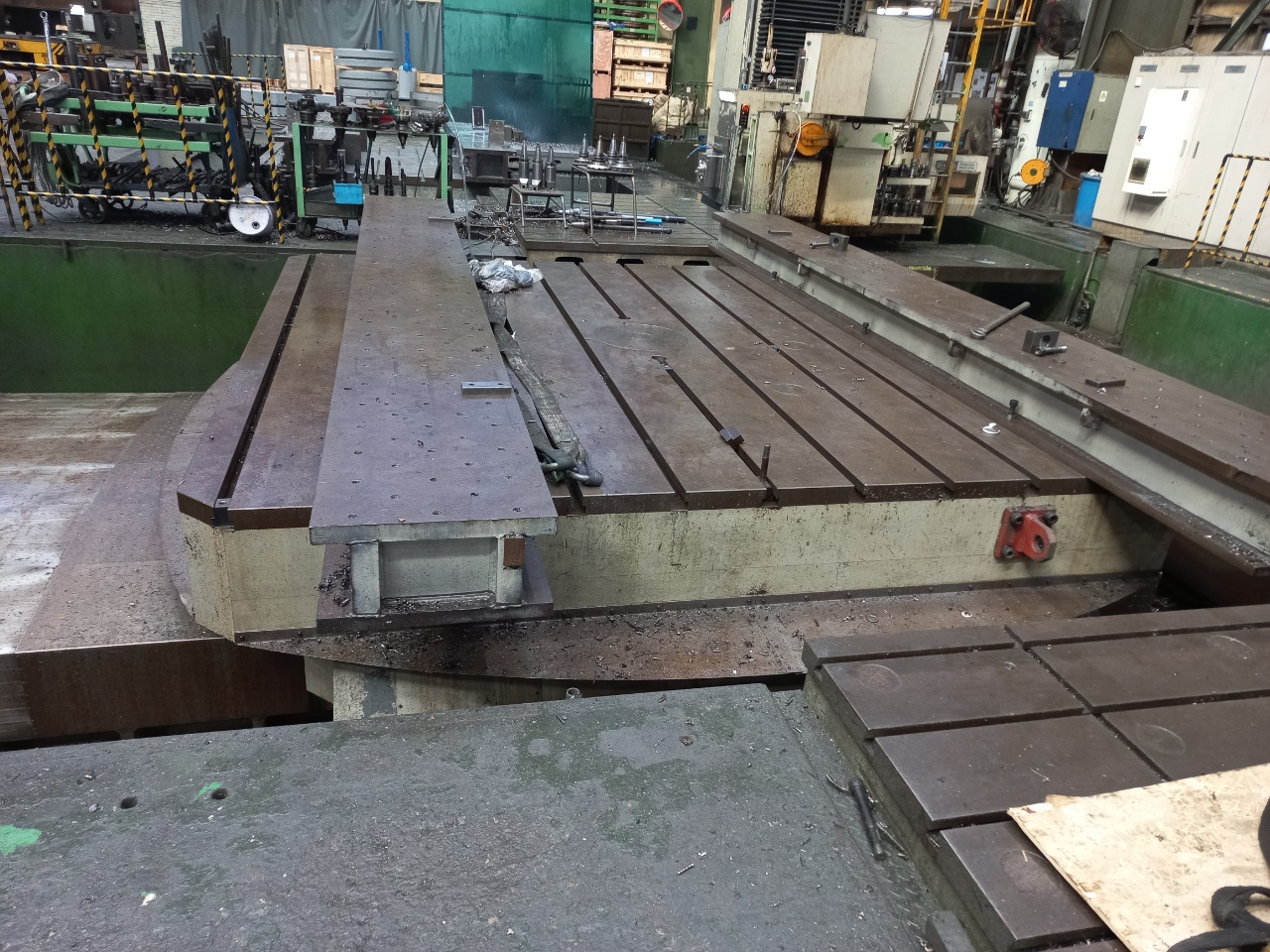

NC Rotary Table 4000 x 4000

NC Rotary Table

Year: 2010

Ref: 1853

Specifications

NC Rotary Table
Year: 2010
4000 X 4000 V-Axis 3000
Carrying Capacity: 80ton

CNC Doosan DNM 350/5AX Machining Center 2018

Maker: Doosan

Model: DNM 350/5AX(4+1 4Axis Simultaneous)

CNC Control: FANUC

Year: 2018

Ref: 1852

Specifications

5-axis (4 + 1, 4-axis Simultaneous) Machining Center

 Make : Doosan

Model : DNM 350/5AX

New in : 2018

Control : FANUC



Travel :

X Y Z - 600 x 655 x 500 mm

B - 150 deg.

C - 360 deg.

Rotary Table dia. : 350 mm

Spindle Speed : 12000 rpm

Tool Type : #40

ATC : 30 tools

Machine  is in good working condition.

CNC OKUMA MCR-BIII Bridge Type Machining Center

Maker: Okuma

Model: MCR-BIII

CNC Control: OSP-P200MA

Year: 2012

Ref: 1851

Specifications

Travel : X Y Z W

4800 x 3700 x 800 x 1300 mm

Table : 2500 x 5100 mm

Max. Table Load : 33 tons

Distance Between Columns : 3000 mm

2-axis Universal Head, 1 deg. 6000 rpm

Vertical Head 1 x 8000 rpm, 1 x 15000 rpm

Tool Type : BT50

ATC : 50 tools

Machine Weight : 56 tons

CNC TBT Deep hole Boring Machine 2012

Maker: TBT

Model: BW 250S

CNC Control: Heidenhain iTNC530

Year: 2012

Ref: 1850







Specifications

** 2 machines available**

core drilling diameter max. 3 - 40 mm

bore depth 1500 mm

Table dimensions 2500 x 1500 mm

table load capacity 15 t

spindle turning speed range 2000 - 9000 U/min



spindle taper 6 DIN55026

spindle motor 10,5 kW

bore slide stroke 750 mm

thread bore device M27 X 3mm

worktool system HSK A 63

spindle hollow 31 mm

A-Axis -25/+15 °

total power requirement 42 kW

weight of the machine ca. 32 t

dimensions of the machine ca. 9,3 x 7,5 x 4,3 m



Description

9-axis deep-hole drilling machine - 1-spindle version / single-lip drilling

- CNC control Heidenhain iTNC 530

- Rotary table 2500 x 1500mm (15t)

- Tool changer 30-fold (HSK A63)

- Knoll chip conveyor

- Coolant unit 1900l

- Resy Filter Unit

- Hydraulic System

Operating hours 65.500h , programme run: 11.100h, spindle run 9060h

CNC Mori Seiki Turn & Mill 2012

Make: MOri Seiki

Model: NTX 2000/15001S

CNC Control: Mori Seiki FS-31IB5

Year: 2012

Ref: 1849

Specifications

Spindle speed : 5000 rpm

Spindle motor : 22/18.5 Kw

Tool taper : CAPTO C6

Number of axis : 6

Max. machining dia. : 610 mm

Max. machining length : 1540 mm

Chuck : Kitagawa 8 inch hollow (BB208)

2nd spindle : 22/18.5 kw/ 5000 rpm

ATC : 40 Tools

Tool spindle : 12000 rpm

Hydraulic steady : 20 ~ 165 mm

Tail stock

Chip conveyor

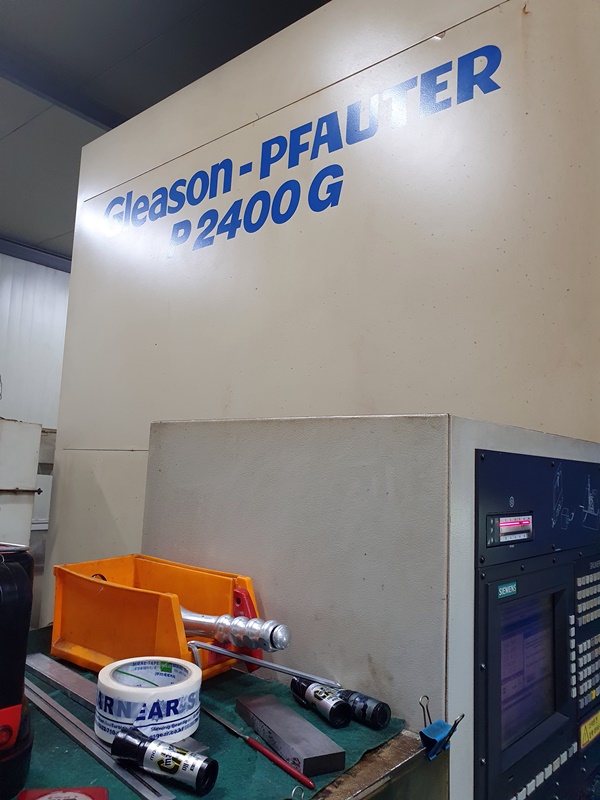

Gleason Pfauter P2400G 2001

Maker: Gleason Pfauter

Moder: P2400G

CNC Control: SIEMENS

Year: 2001

Ref: 1848

Specifications
Nominal wokpiece diameter: 2400mm A
Maximum axial slide travel
Standard: 700mm C
Optional: 1000mm C
Optional: 1300mm C
Optional: 1600mm C
Lowest grinding wheel
Position over table: 450mm D
Table bore diameter: 610mm E
Depth of table bore: 870mm F
Min/max tailstock arm
position over table: 925/1825 mm G
Table diameter: 1870mm H
Table height: 970mm I

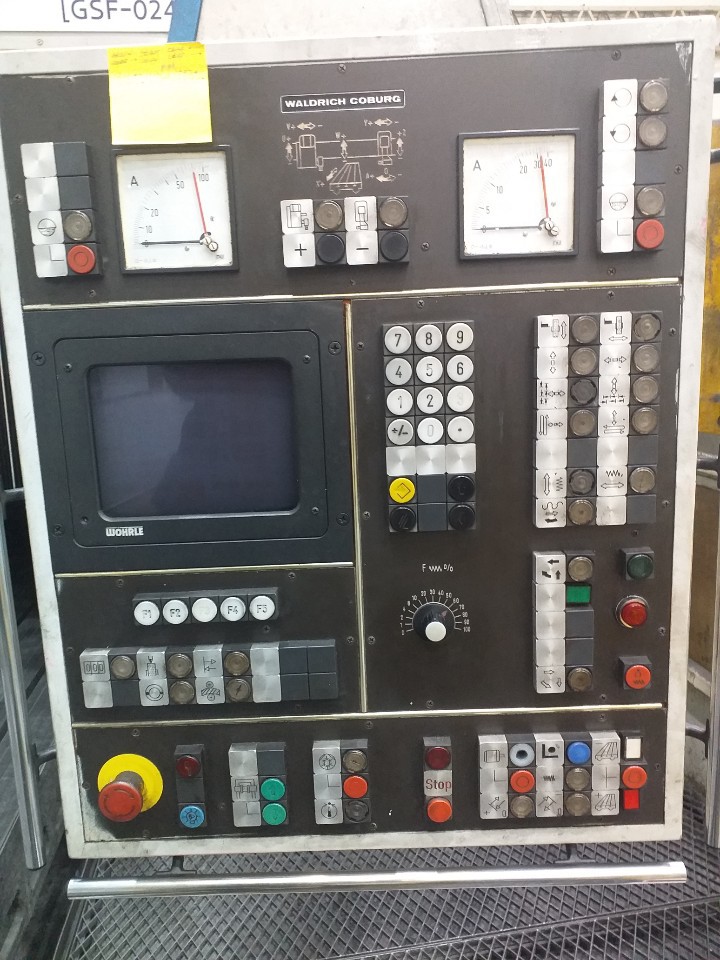

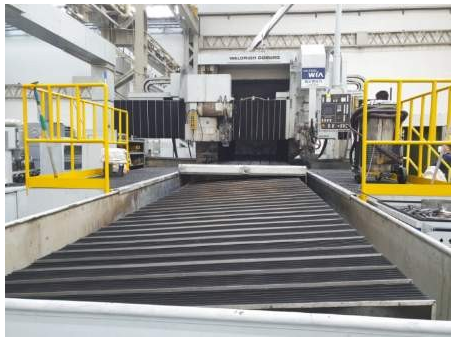

Maker: Waldrich

CNC Control: SIEMENS

Year: 1989

Ref: 1847

Specifications

Between Housings 2000mm
Table 1800x6000mm
