SOLD
Maker: SHIN NIPPON
RB-6VM 5-Face, Max. 6000 rpm,

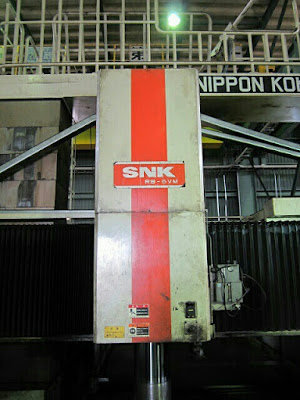

SNK CNC Bridge Type Vertical Machining Center
Model: RB-6VM 5-Face
Age: 2006
TRAVELS:
X-Axis, Table Travel 246.06"
Y-Axis, Spindle Head Travel 150"
Z-Axis, Quill Vertical Travel 23.62"
W-Axis, Cross Rail Vertical Travel 62.99"
Right Angle Head Indexing 5 Degrees
SPECIFICATIONS:
Distance Between Columns 137.79"
Distance Table Top to Spindle Nose 70.86"
Table Size 118.11" x 236.37"
Spindle Taper ISO 50
Table Weight Capacity 66,000 lbs
Spindle Speeds 40-6000 RPM
Rapid Traverse, X & Y Axes 787 IPM
Rapid Traverse, Z-Axis 315 IPM
Rapid Traverse, W-Axis 236 IPM
Cutting Feed Rate, X & Y Axes 0.039-393 IPM
Cutting Feed Rate, Z-Axis 0.039-315 IPM
Cutting Feed Rate, W-Axis 0.039-236 IPM
Positioning Accuracy, X & Y Axes 0.0002"
Repeatability, X & Y Axes 0.0001"
Machine Weight 178,200 Lbs
