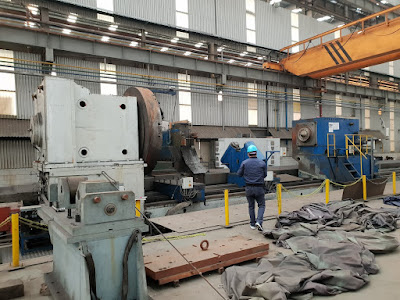

Maker: SNG
Model: SNG 2500 x 12000
Year: 2007(Rettrofitted)
CNC Control: SIEMENS 840D
Ref: 1450
Length: 21.000 mm
Width-basic machine, electric cabinet included: 6.300/9.700
mm
Height: 4.700 mm
Weight (without special attachments): 310 T
Maximum swing over the bed guideways: 3.150 mm.
Maximum swing over saddle: 2.700 mm
Distance between centers: 12.000 mm
Diameter of the face plate with four independent jaws: 2.700
mm
Max. load between centers: 300 T
Axial load on the center of the headstock: 150 T
Radial load on the center of the headstock: 220 T
Max. load between face plate and steady rest: 30 T
Max. load on a single steady rest: 80 T
Max. load supported by faceplate: 150 T
Max. load supported only by faceplate, without any auxiliary
rest: 15 T./600 mm distance from faceplate front surface
