Maker: Doosan
Model: DB 130CX

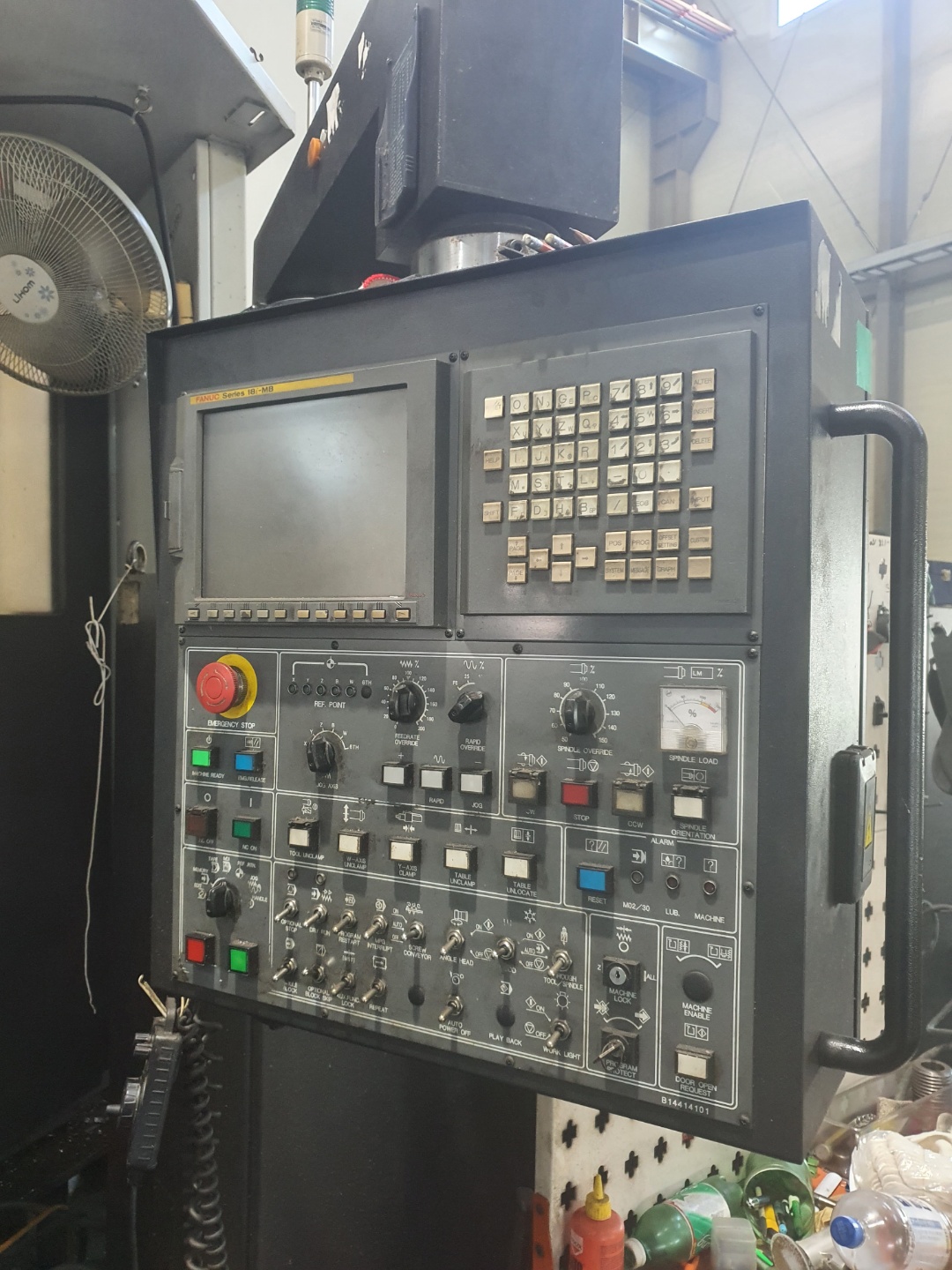

CNC Control: Fanuc 18iMB
Year: 2008
Ref: 1486
Specifications
Spindle Rpm:
2,500
Boring
Spindle Diameter: 5.12"
Spindle
Taper: BT-50
X-Axis
Travel: 157.48 “
Y-Axis
Travel: 78.74 “
Z-Axis
Travel: 62.99 “
W-Axis
Travel: 27.56"
B-Axis
Resolution: .001 Degrees
Working
Surface: 70.86" X 78.74"
Power: 30/35 hp
Table
Capacity: 28,659 lbs.
Dimensions: 370” X 295” X 197”
Weight: 104,000 lbs.
EQUIPPED
WITH
60 Position ATC
Coolant
Through Spindle
Chip
Screw/Chip Conveyor
X, Y, Z Axis
Linear Scales
Full Coolant Shroud
