Maker: O-M
Model: NEO-26EX

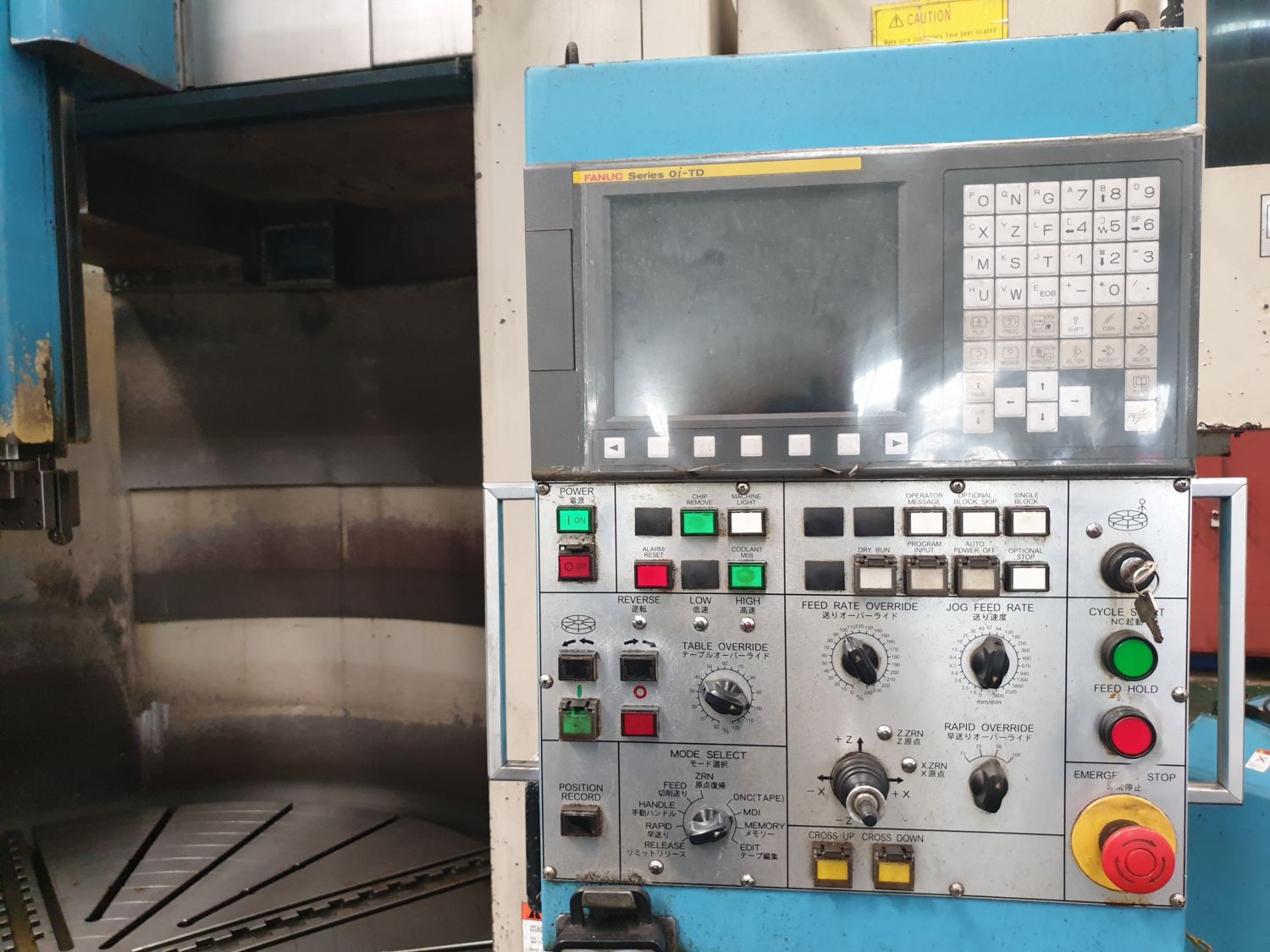

CNC Control: Fanuc Oi-TD
Year: 2011
Ref:1482
Table dia. :
2600 mm
Max. Swing dia.
: 2800 mm
Max. cutting
dia. : 2800 mm
Max. cutting
height : 2000 mm
Max. table load
: 20000 Kg
Distance from
table surface to holder end : 2200 mm
Max. torque :
40000 Nm
Max. cutting
force : 25000 N
Crossrail
movement (up-down) : 1200 mm
Cross rail
positioning step : 200 mm x 7 steps
Ram movement
From table
center to right : 2010 mm
left :
100 mm
Up-down : 1000 mm
Ram size : 230 x 230 mm
Table speed :
1.0 ~ 39.8 rpm
3.8 ~ 150 rpm
(2 steps)
Rapid feed rate
(X, Z) : 10000 mm/min.
Cutting feed
rate : 0 ~ 3600 mm/min.
Main Motor
(Fanuc) : AC 30/37 Kw
ATC 12 tools
Fixed address
type random selection
Machine Weight : 26300 Kg
